micro:bit Python Editor

Display

The micro:bit's LED display output

Images: built-in
The micro:bit has lots of built-in images that you can show on the display.
Select image:
Code example:
display.show(Image.HEART)
sleep(400)
The API documentation contains a full list of the built-in images.
Scroll
You can scroll words and numbers on the micro:bit’s LED display:
Code example:
display.scroll('score')
display.scroll(23)
You can add optional extra parameters to control the way scrolling works.
The delay parameter controls the speed of scrolling. A delay less than 150ms will make scrolling faster than normal.
If the loop parameter has a value of True, the scrolling will loop continuously. The default value is False which means there is no looping.
The wait parameter controls whether the program waits for the scrolling to stop before carrying out the next instruction.
This code will keep scrolling the word 'score' faster than normal in a loop, and play music at the same time:
Code example:
import music

display.scroll('score', delay=100, loop=True, wait=False)
music.play(music.ODE)
Show
You can show words and numbers on the LED display one character at a time:
Code example:
display.show('score')
display.show(23)
You can add optional delay, loop and wait parameters.
The delay parameter controls the speed at which multiple characters, digits or images are displayed. Any delay below 400ms will be faster than normal, anything above 400ms slower than normal.
If the loop parameter is set to True, the show function will loop continuously. The default value is False which means there is no looping.
The wait parameter controls how long the program waits before the next instruction is executed.
This example will keep showing a countdown in a loop with 1 second between each number and will not wait before executing the next instruction:
Code example:
display.show(9876543210, delay=1000, loop=True, wait=False)
Images: make your own

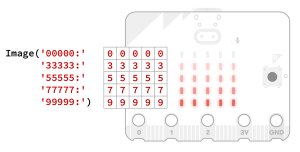

You can make your own images. Each LED's brightness is represented as a number between 0 (off) and 9 (brightest):
Code example:
display.show(Image('00300:'
'03630:'
'36963:'
'03630:'
'00300'))
This example shows a star that is bright in the middle and gets fainter towards the edges of the LED display.
Clear the display
Clear the display, turning all the LEDs off:
Code example:
display.clear()
Pixels

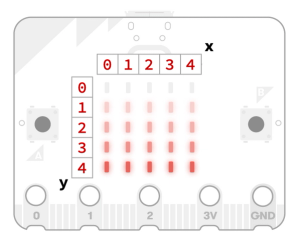

A pixel is an individual dot in an image. Each LED is a pixel in a micro:bit image. Each pixel has an x,y co-ordinate, starting at the top left with 0,0.
Select:
Use numbers 0 to 9 to select how bright you want each pixel to be, with 9 being the brightest. This will light the top left LED as bright as it can go:
Code example:
display.set_pixel(0,0,9)
This program will fill the LED display one pixel at a time:
Code example:
for y in range(5):
for x in range(5):
display.set_pixel(x,y,9)
sleep(50)
Note that this uses a nested loop, a loop inside a loop.
